Complete Resin Making Complete Production Plant Line

1 / 5

Complete Resin Making Complete Production Plant Line

Customization:	Available
After-sales Service:	for Year Service
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.:50-5000L

Condition:New

Certification:ISO9001, QS

Tank Material:Metal Tank (SUS304/SUS316)

Storage Objects:Solid, Liquid, Gas

Heating Method:Oil Heating with Coil Pipe, Water Cooling

Guarantee:One Year

Capacity:200 set/Month

Acrylic Resin Polyester Resin Production Line

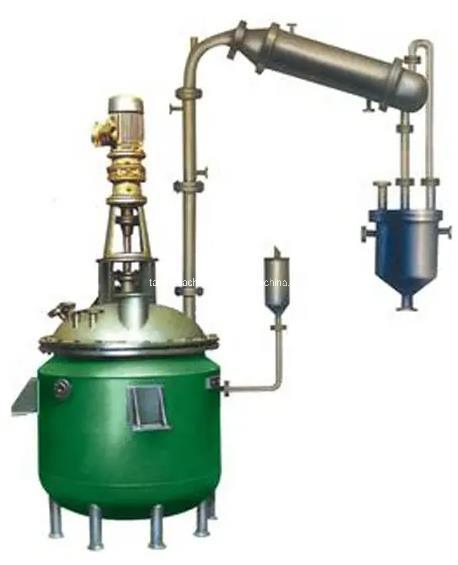

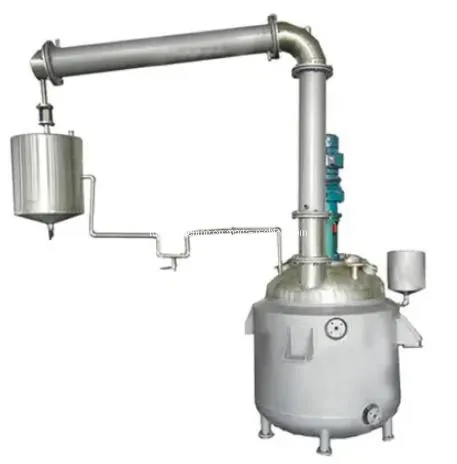

The resin reaction kettle is the key equipment for producing unsaturated polyester resin, phenolic resin, epoxy resin, ABS resin, and paint. The complete equipment set is composed of a reaction pot, vertical fractionation column, horizontal condenser, water storage device, oil spill tank, and necessary pipelines.

Key Features:

Capacity Range: 50~20,000 Liters.
Dual Heating/Cooling: Jacket and coil pipes are used together.
Efficiency: High-speed reaction and well-distributed heat conductivity.
Quality: Ensures consistent resin quality with easy operation and low cost.

Production Components

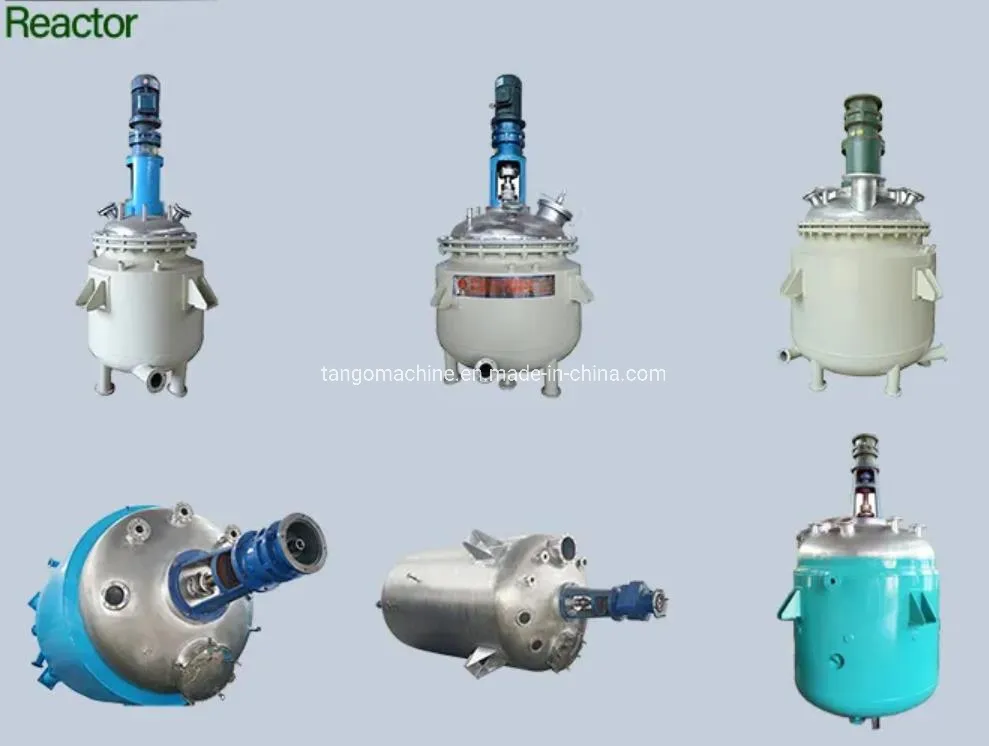

Key Reactor
Vertical Distillation Column
Vertical & Horizontal Condenser
Dispersion Reactor
Oil Water Separator
Vacuum System

Applicable Resins

Unsaturated Polyester Resins
Phenolic & Epoxy Resin
Alkyd & ABS Resin
Polyurethane & Acrylic Resin
Urea-formaldehyde Resin

Production Flow Charts

Flow Chart One

Prepare material → Add P1,P2 → Collect samples → Test water quantity → Add change character MP1 → Draw vacuum → Increase temperature (70°C to 92°C) → Test NCO → Reduce temperature → Discharge & Packing.

Technical Structure & Process

1. Mixed Grinding: Preparation of raw materials, chain extender, and additives into the dispersion cylinder for high-speed stirring and grinding to fineness less than 15μm.

2. Pumping & Stirring: Vacuum-assisted material transfer to reactor kettle. Automatic control of temperature (105ºC-110ºC) and vacuum stirring for 120 minutes.

3. Cooling & Catalyst: Circulating cold oil through the jacket to reduce temperature below 70ºC, followed by catalyst addition and room temperature cooling.

4. Detection & Feeding: Viscosity, total hydroxyl value, and NCO detection. After qualification, the material is discharged under nitrogen sealing to prevent pollution.

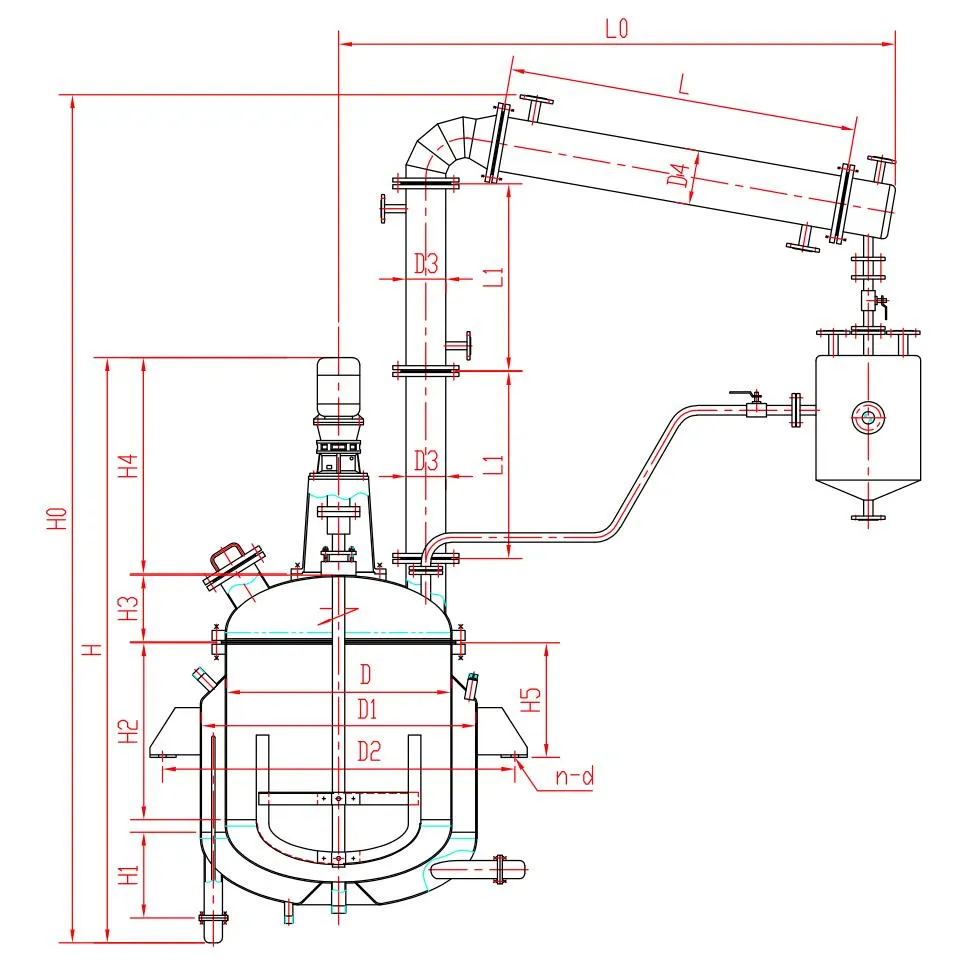

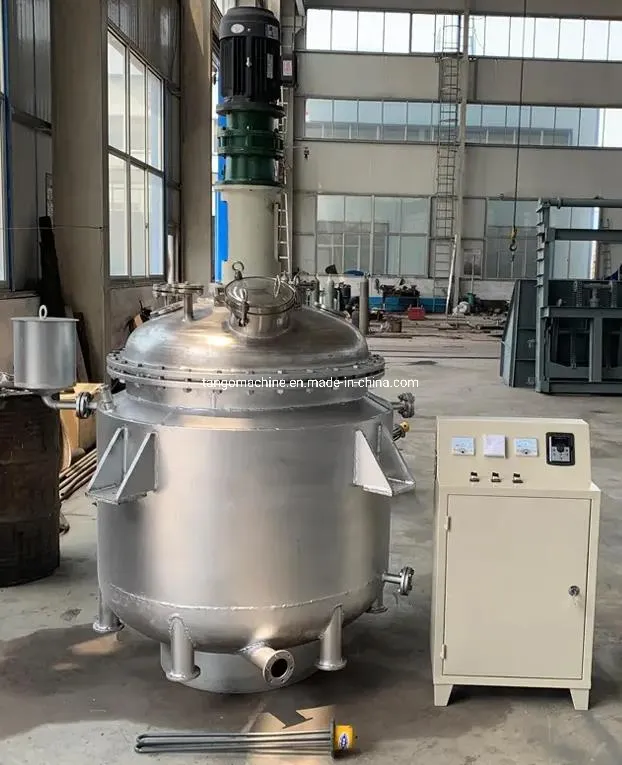

Reactor Structural Overview

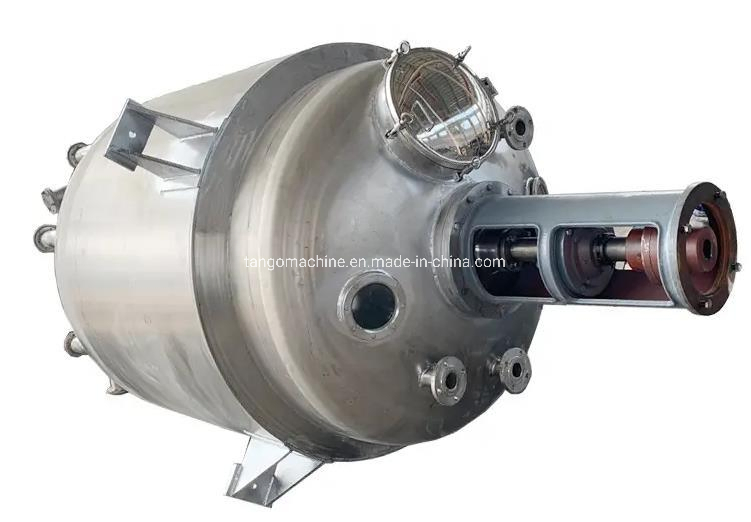

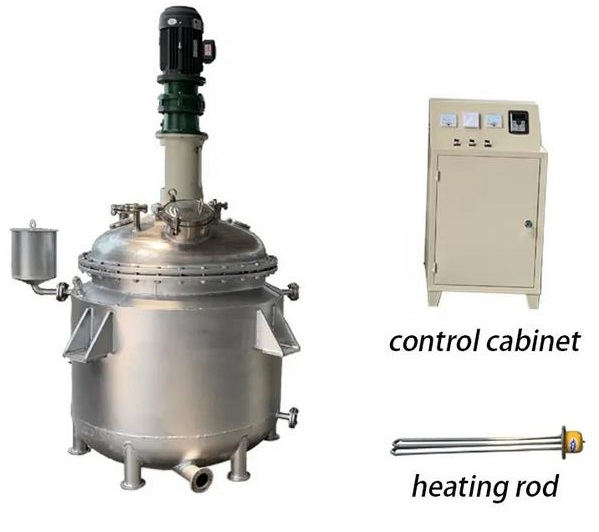

The reaction pot is composed of the pot body, cover, stirrer, heating jacket, driving device, and shaft sealing device. It features high temperature resistance, corrosion resistance, and strong production capacity.

Inner Tank: Made of SUS304, SUS316L, or SUS321 stainless steel with mirror polishing.

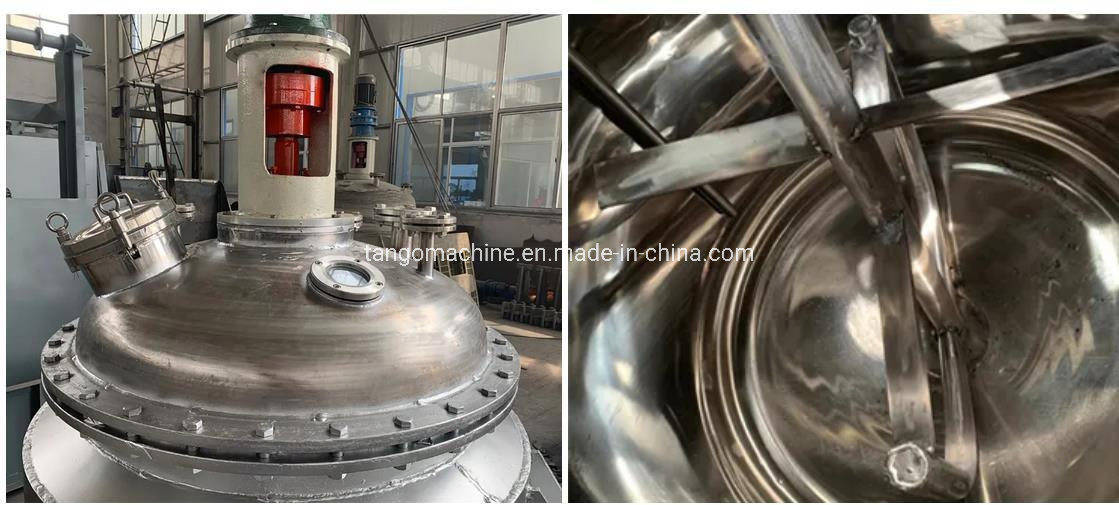

Agitator Types: Anchor, frame, paddle, turbine, or scraper type to meet specific material requirements.
Sealing: Pressure-resistant sanitary mechanical sealing to prevent leakage and pollution.

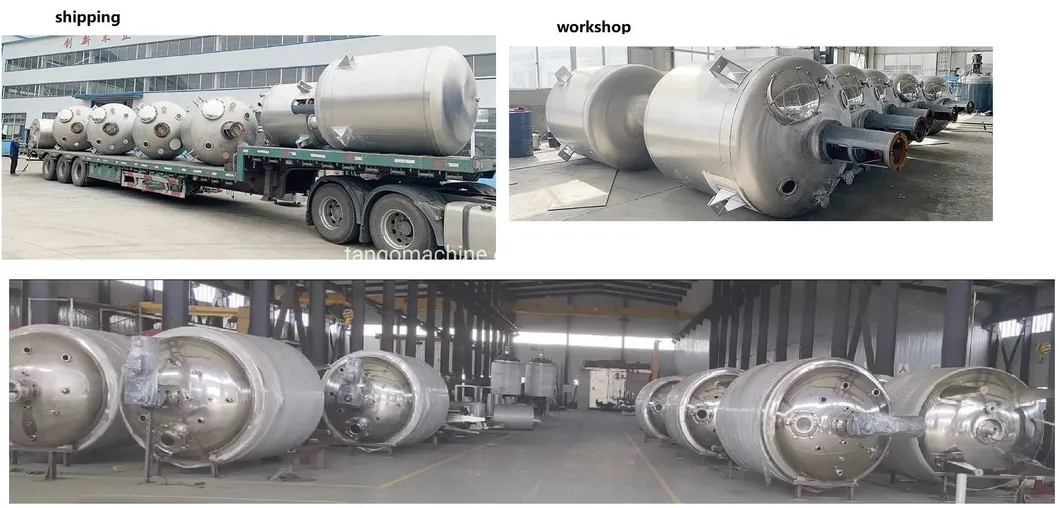

Equipment Showcase

Frequently Asked Questions

Q1: What is the capacity range of your resin production line? A: We offer equipment with capacities ranging from 50 Liters up to 20,000 Liters, customizable to your production needs.

Q2: Which materials are used for the reactor construction? A: The inner tank is typically made of SUS304, SUS316L, or SUS321 stainless steel, while the jacket can be stainless or carbon steel depending on the process requirements.

Q3: What types of resin can this equipment produce? A: It is highly versatile and suitable for Unsaturated Polyester Resin (UPR), Alkyd resin, Phenolic resin, Epoxy resin, ABS resin, and various paints.

Q4: How is the temperature controlled during the reaction? A: The system uses a combination of jacket and coil pipes for both heating (via oil or steam) and cooling (via water or cold oil) to ensure precise temperature management.

Q5: Does the equipment support vacuum operations? A: Yes, the production line includes a full vacuum system for material transfer, reaction, and de-bubbling processes.

Q6: What is the guarantee period for the equipment? A: We provide a one-year guarantee for the complete set of equipment.
