SAE J1037 5/32" Windshield VAC Hose with Excellent Aging Resistance

1 / 5

SAE J1037 5/32" Windshield VAC Hose with Excellent Aging Resistance

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.: 5/32"

Material: Pure EPDM

Inner Diameter: 4mm - 9.5mm

Outer Diameter: 7mm - 13mm

Standard: SAE J1037 / SAE J1307

Temperature: -40°C to +125°C

Application: Windshield Washer & Vacuum Systems

Color: Black

Windshield Washer & Vacuum Hose

🔥 High Resistance

Excellent resistance to heat, oil, fuel vapor, and aging, ensuring reliable performance under harsh conditions.

🛠️ Versatile Use

Ideal for OEM production, vehicle maintenance, and complex windshield washer systems.

✅ EPDM Durability

Made from pure EPDM material, renowned for superior ozone and aging resistance.

Inner Diameter (inch)	Inner Diameter (mm)	Outer Diameter (mm)
5/32"	3.97	7
7/32"	5.56	9
7/64"	2.78	6
5/16"	7.94	11
3/8"	9.52	13

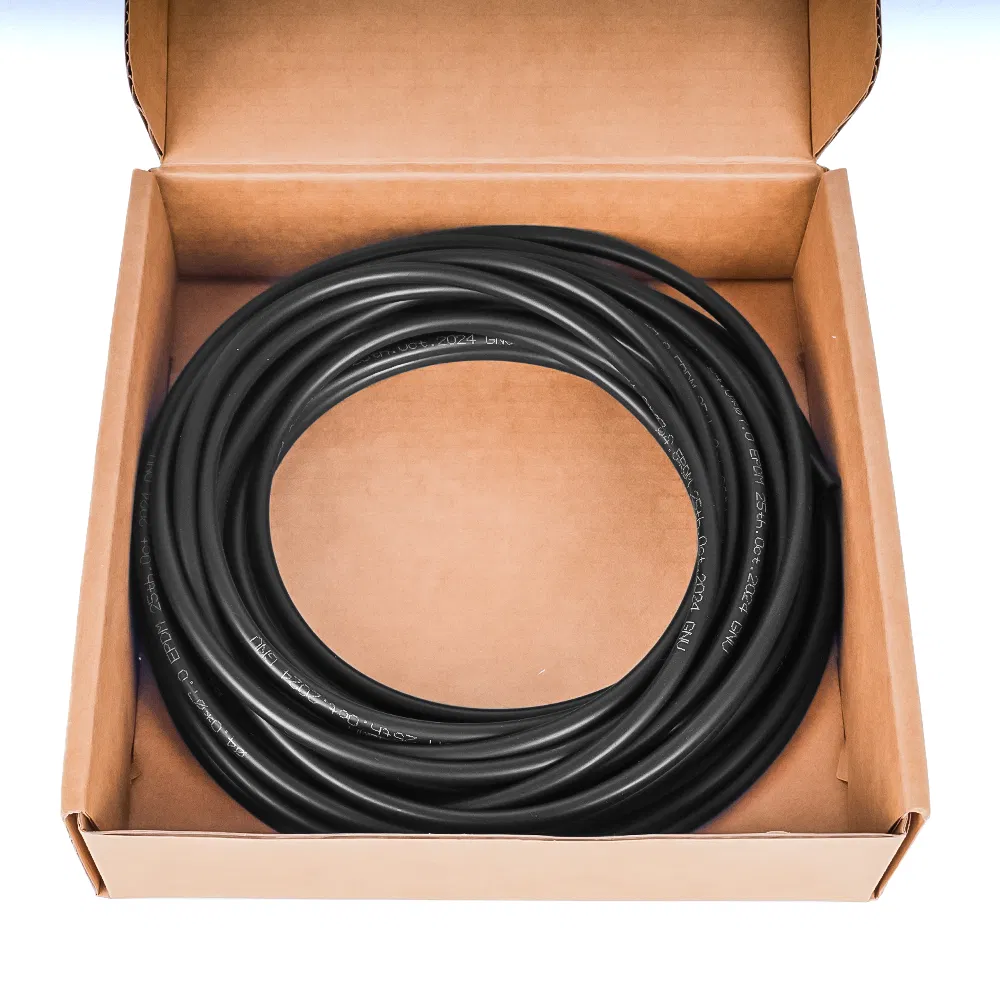

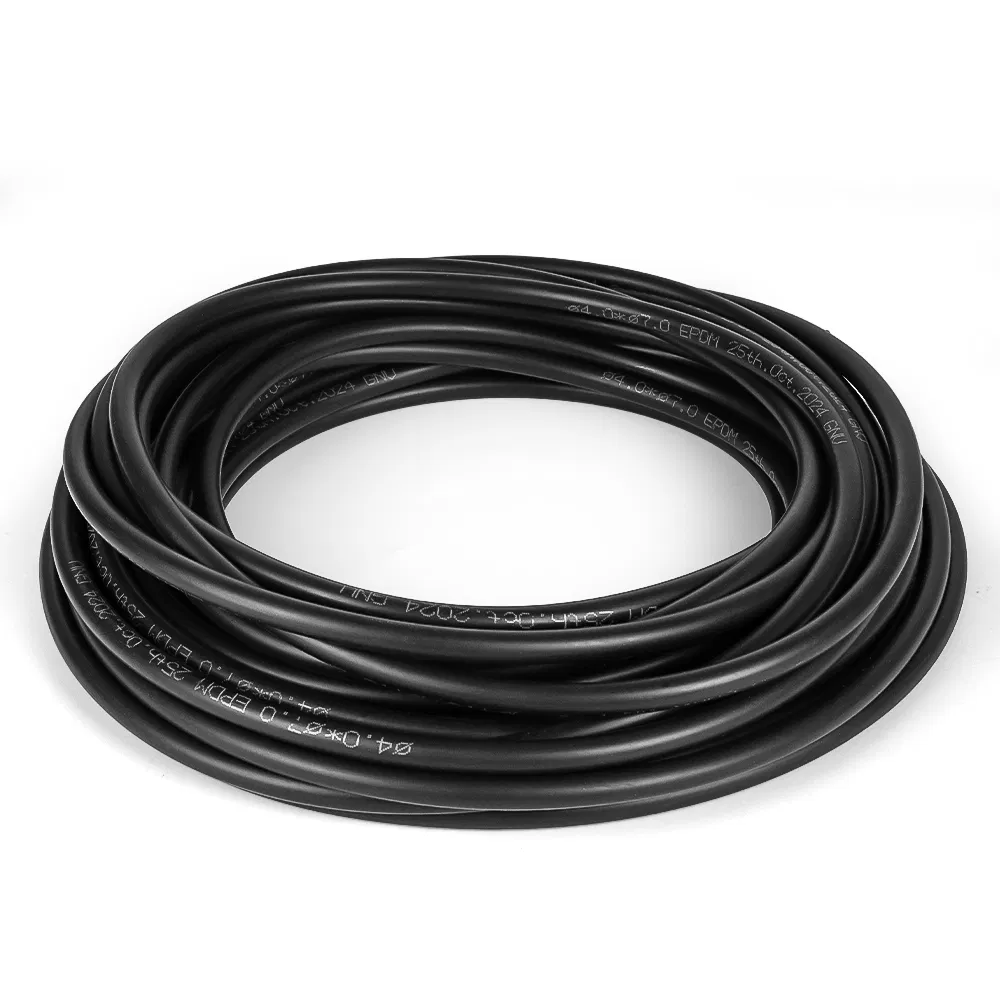

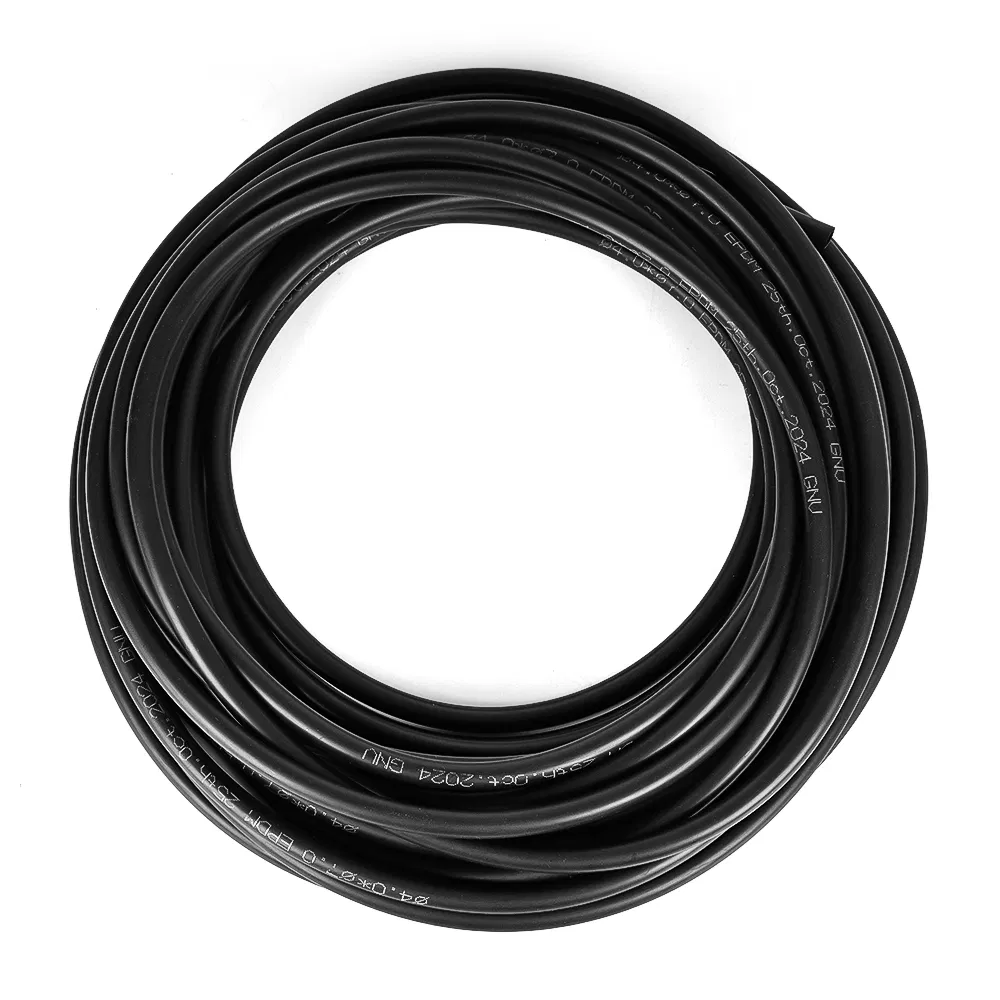

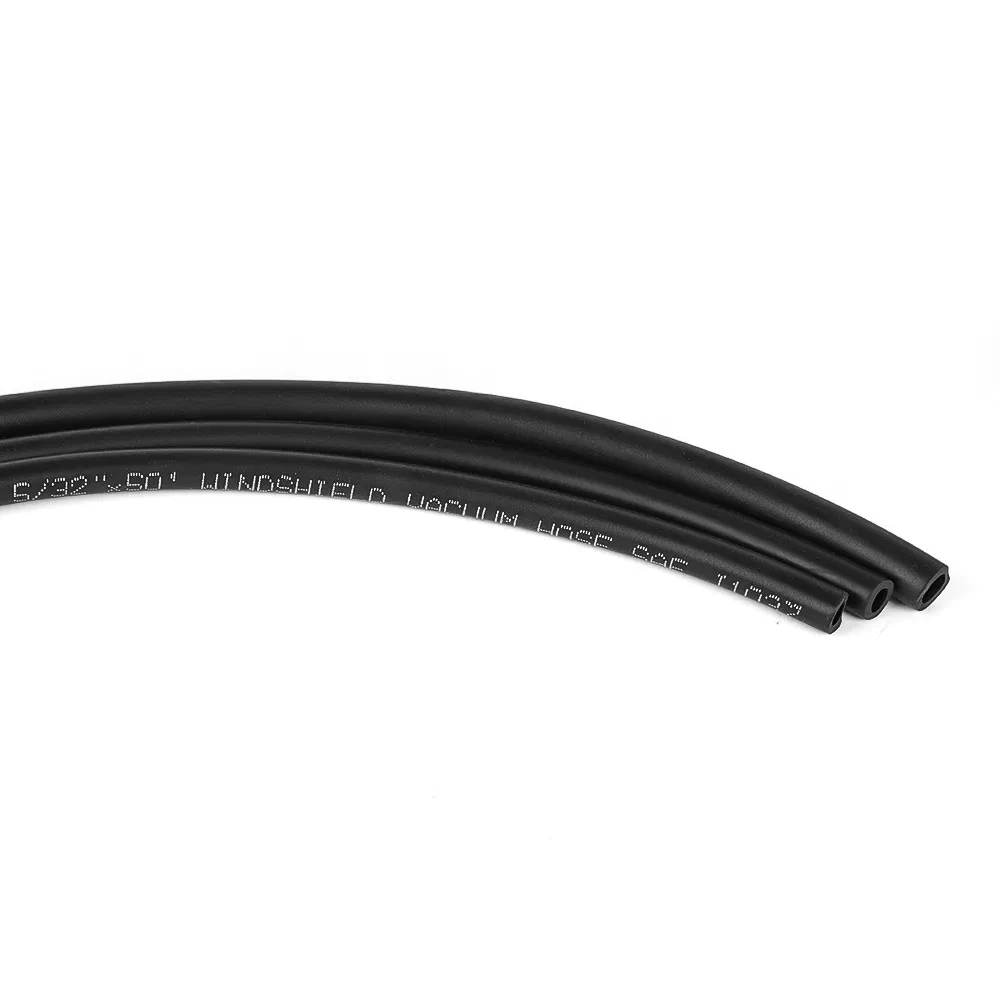

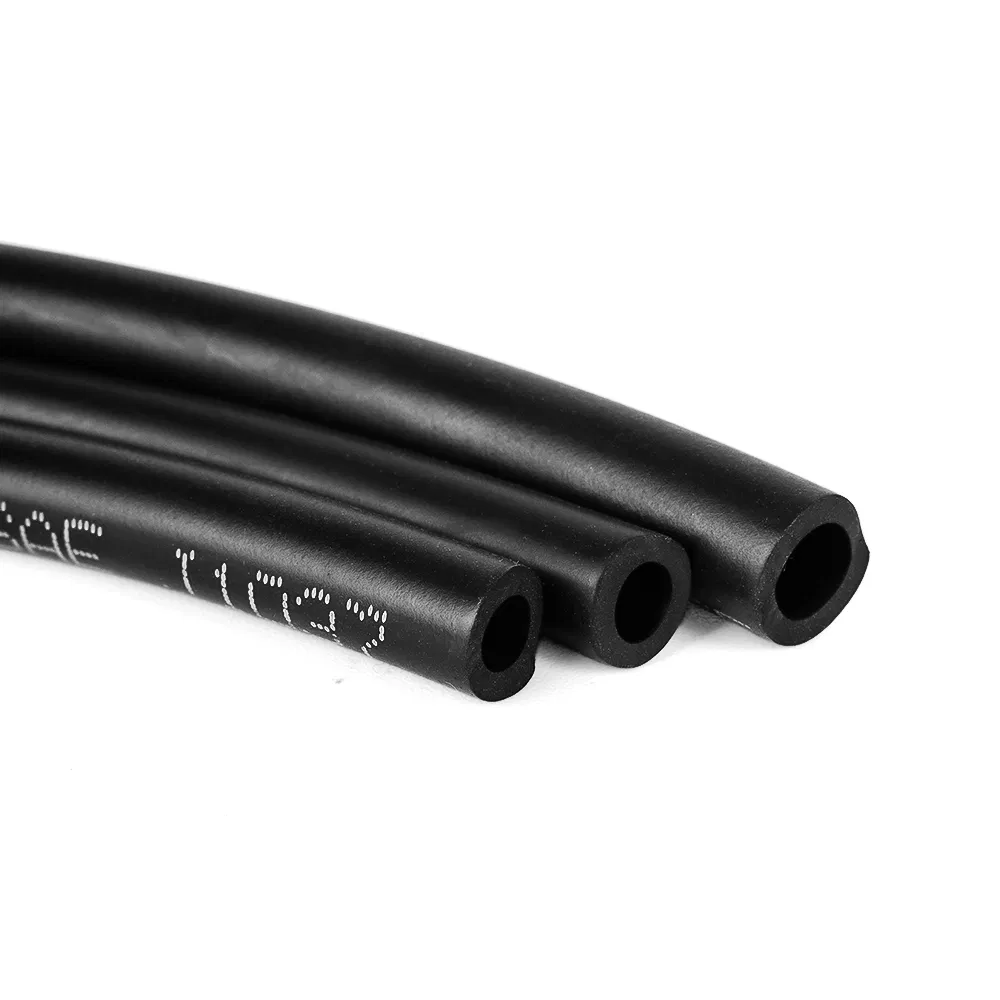

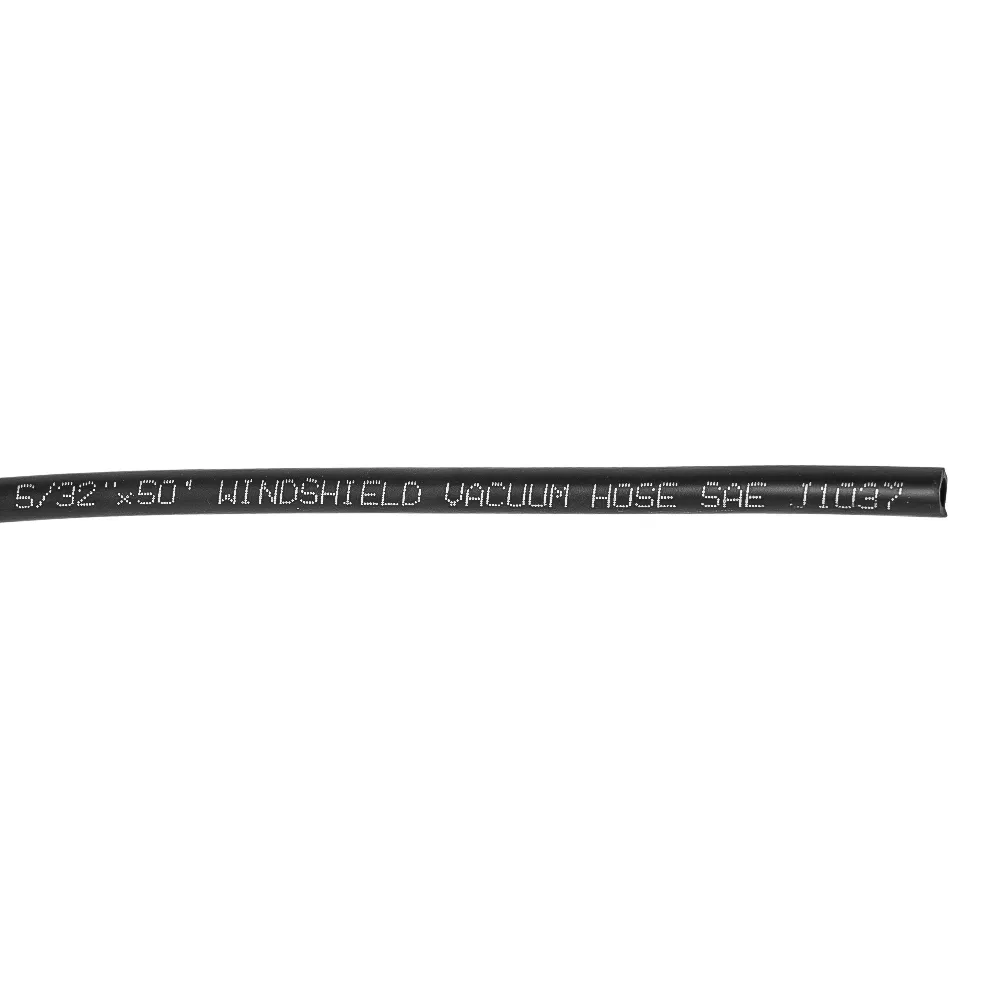

Product Gallery

Common Questions (FAQ)

🔹 What are the primary applications for this hose?

This hose is specifically designed for windshield washer systems and vacuum-operated automotive components.

🔹 What temperature range can this hose withstand?

The hose operates reliably in a continuous temperature range from -40°F to +257°F (-40°C to +125°C).

🔹 Which industry standards does this product meet?

It is manufactured in strict accordance with SAE J1037 and SAE J1307 specifications.

🔹 Why is EPDM used for these hoses?

Pure EPDM is selected for its exceptional resistance to aging, ozone, and environmental weathering, ensuring a long service life.

🔹 Is the hose resistant to automotive fluids?

Yes, it features excellent resistance to heat, oil, and fuel vapors commonly found in engine environments.

🔹 What sizes are available?

We offer multiple sizes including 5/32", 7/32", 7/64", 5/16", and 3/8" inner diameters to suit various system requirements.
