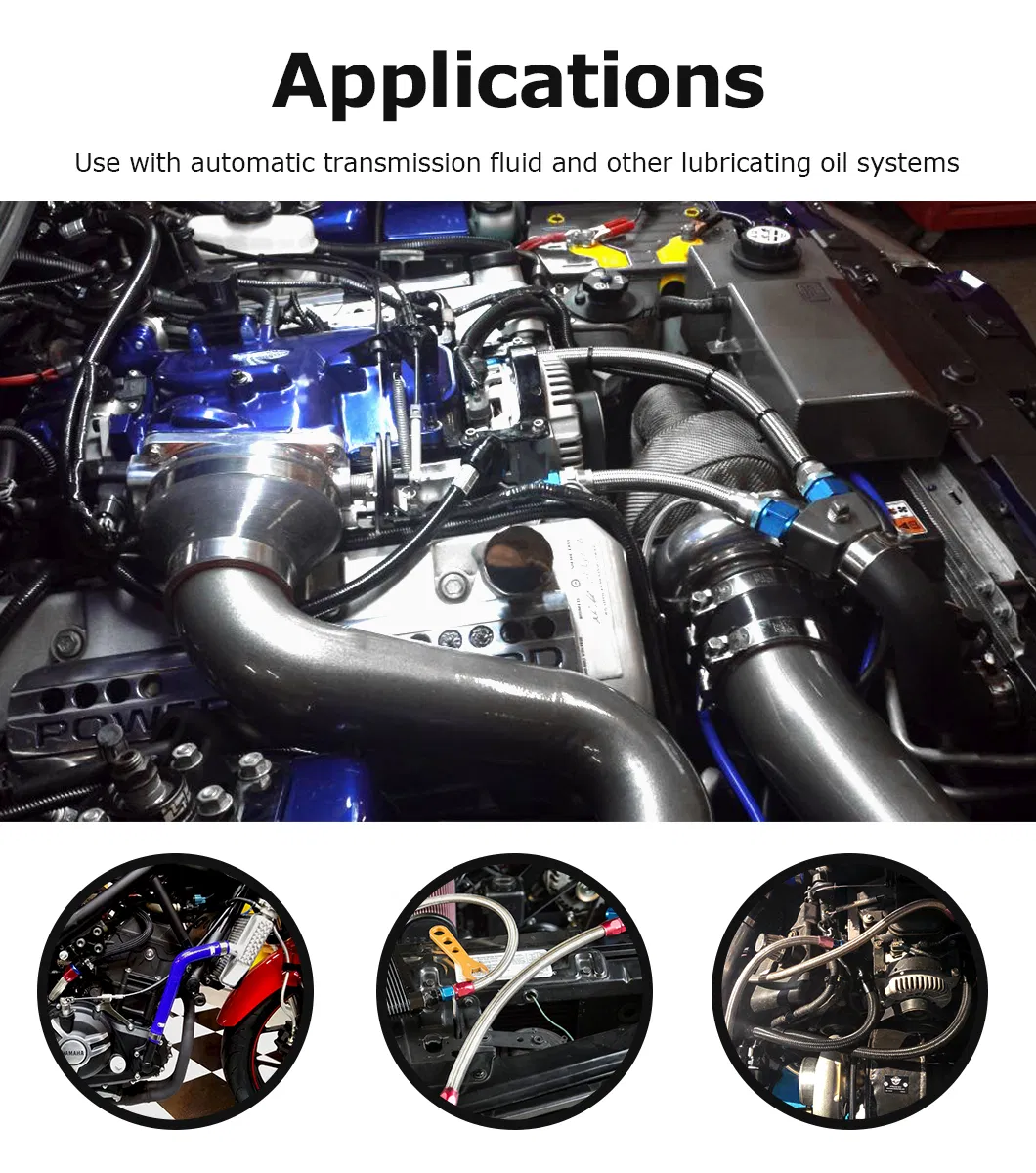

The oil cooler hose circulates oil between the oil cooler and engine. Such auto hose helps keep the engine from overheating. If the hose fails, you may experience oil leaking from the hose or a low oil warning light.

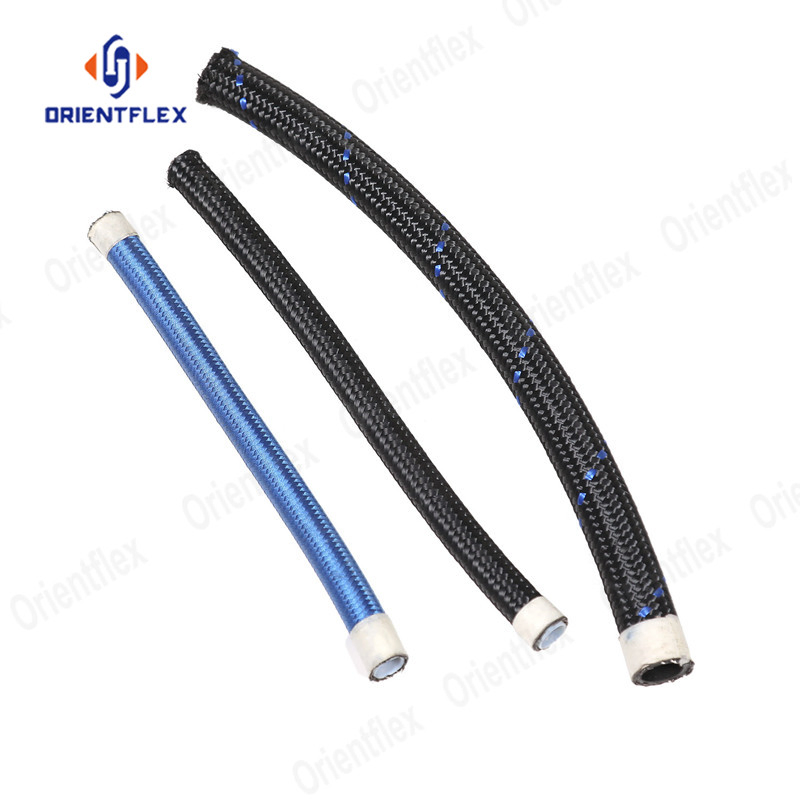

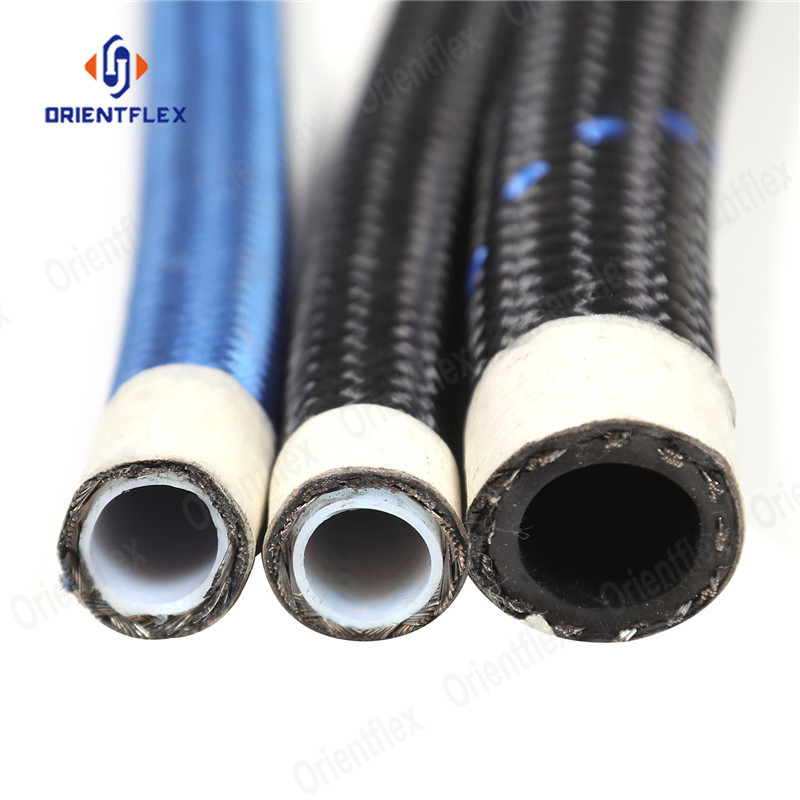

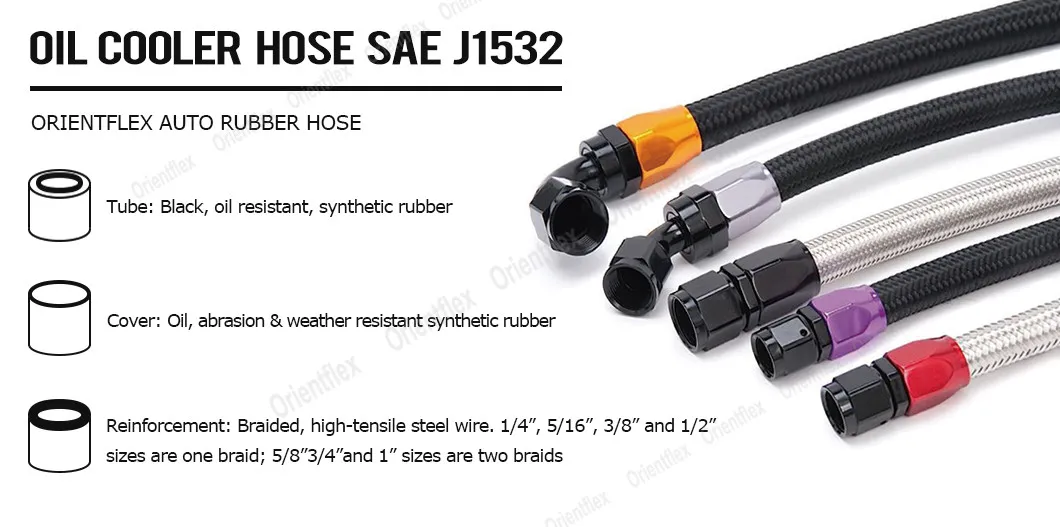

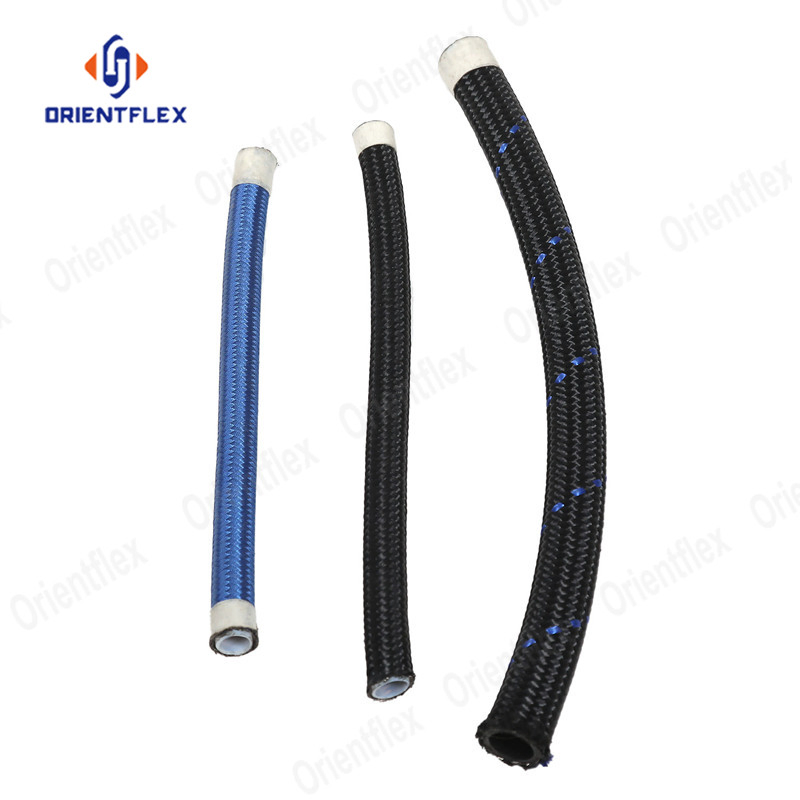

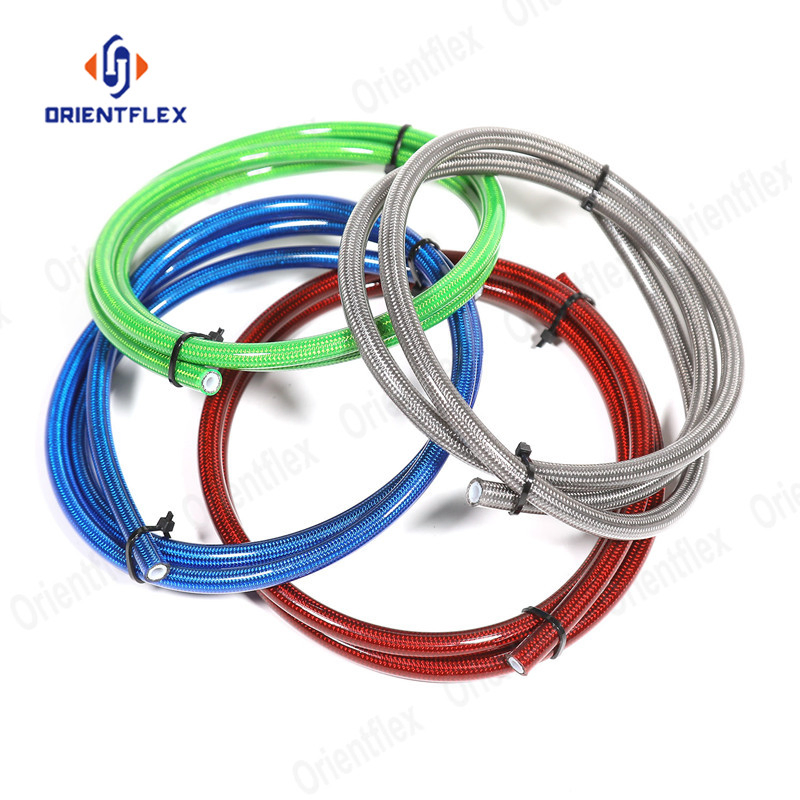

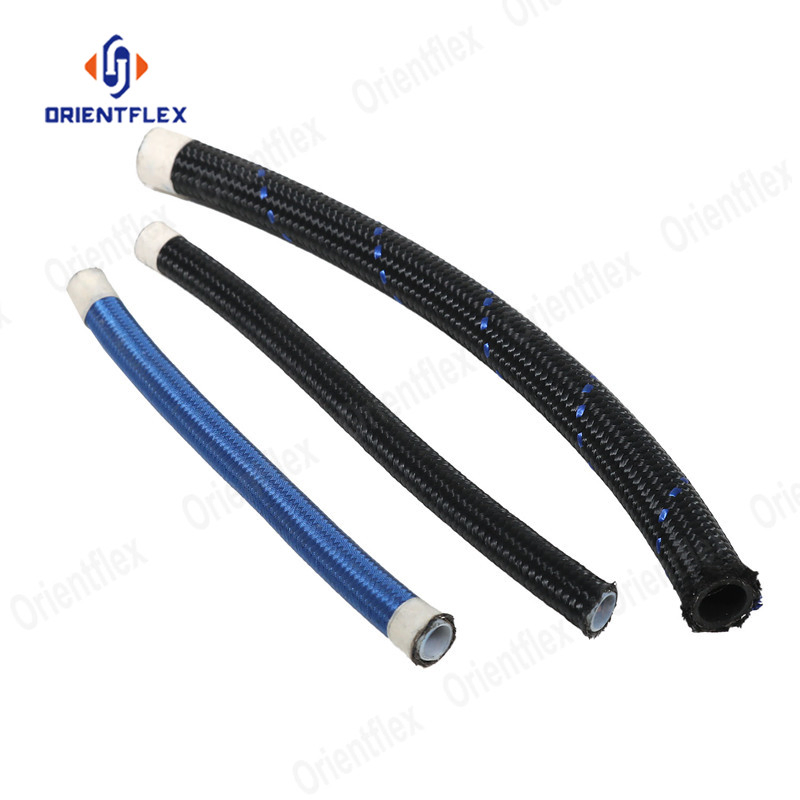

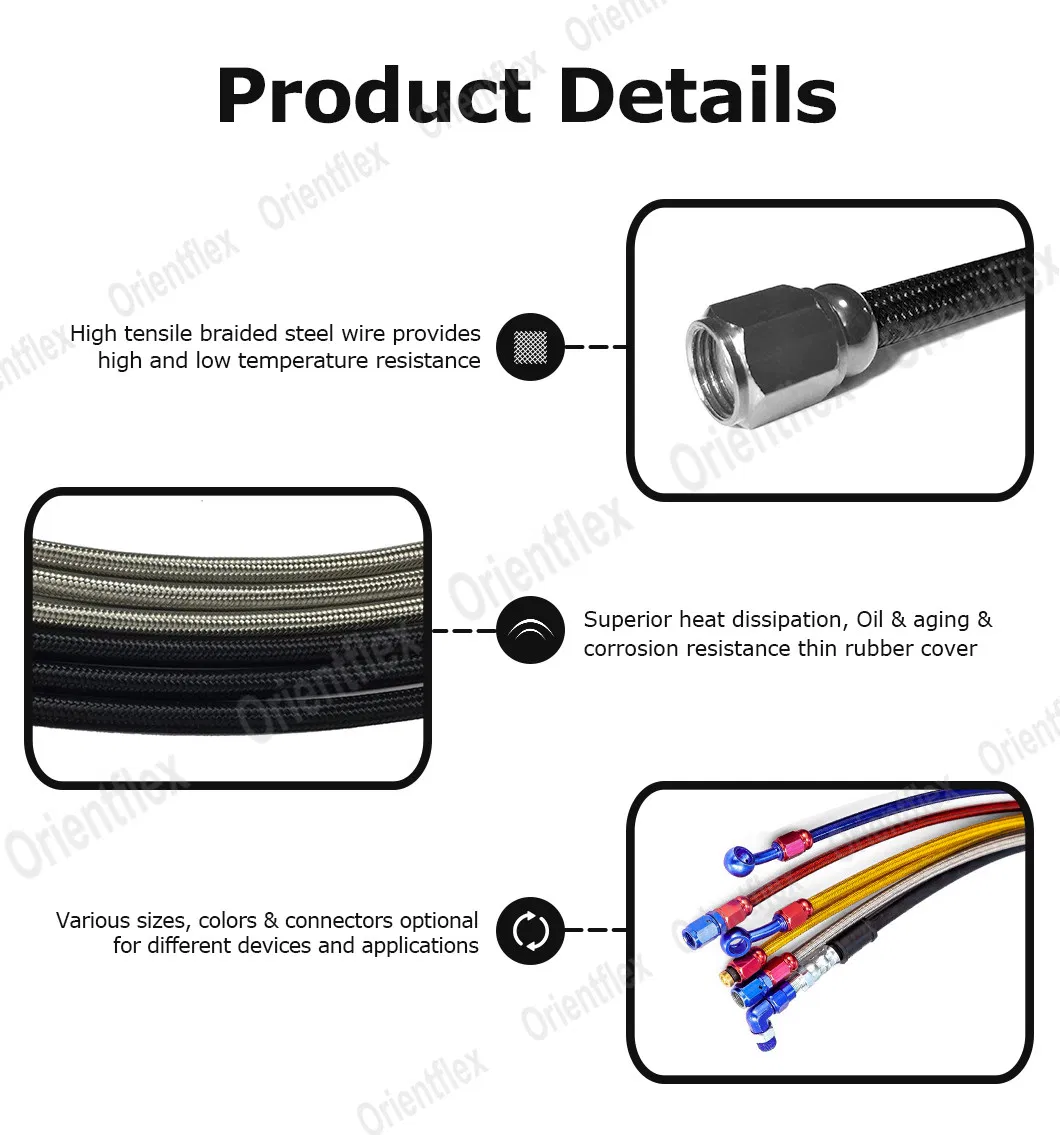

The oil cooler hose consists of a synthetic rubber inner tube with a partial stainless steel reinforcement inner braid. There is a SS braid on the outside, making it exceptionally lightweight, flexible, and durable. Rubber hose with stainless steel overbraid to offer extra protection against abrasion. Ideal for swaging or when using hose clips.
1. Oil resistance | 2. Aging resistance | 3. Corrosion resistance | 4. Superior heat dissipation | 5. High and low temperature resistance

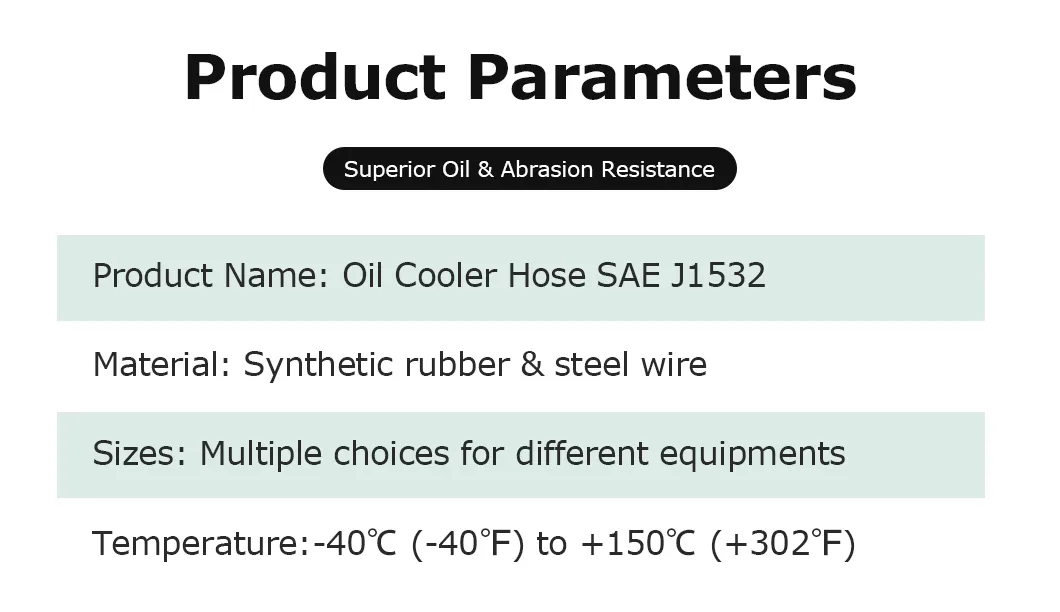

Temperature Range: -104 ºF to + 302 ºF (-40ºC to + 150 ºC)
| Item Code | I.D (mm) | O.D (mm) | W.P (Mpa) | B.P (Mpa) |
|---|---|---|---|---|
| An04 | 5.56 | 11.13 | 7 | 42 |
| An06 | 8.73 | 13.89 | 7 | 42 |
| An08 | 11.12 | 16.28 | 7 | 35 |
| An10 | 14.27 | 20.24 | 7 | 35 |
| An12 | 17.47 | 23.82 | 7 | 26.3 |
| An16 | 22.22 | 29.96 | 5.2 | 17.5 |
| An20 | 28.5 | 35.81 | 5.2 | 17.5 |
